Exterior Panel - Mesa Type

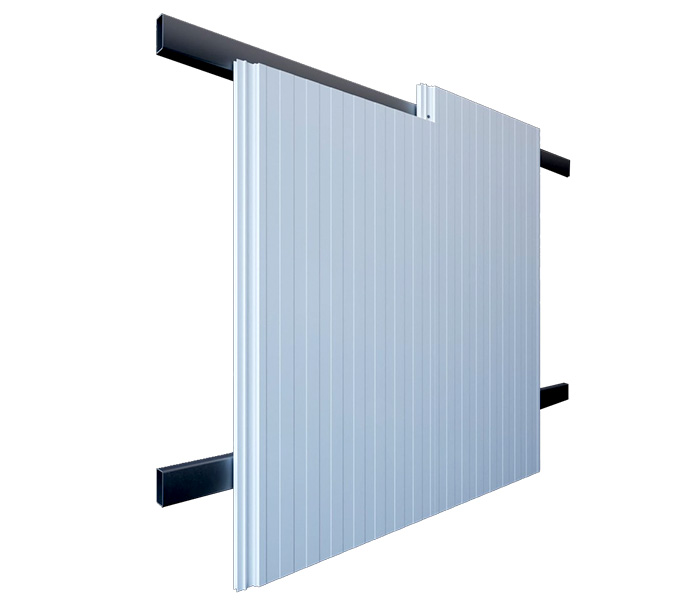

Product Sample

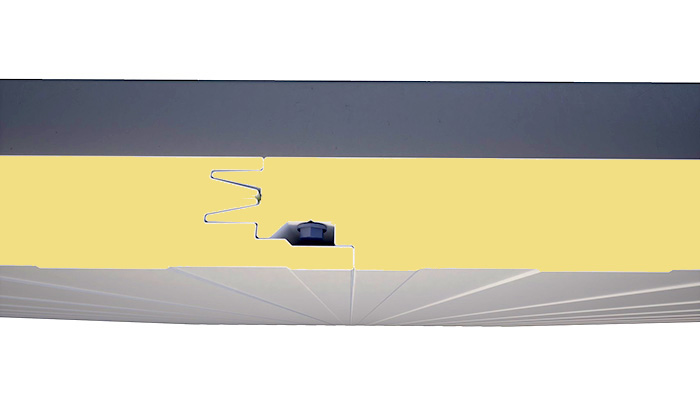

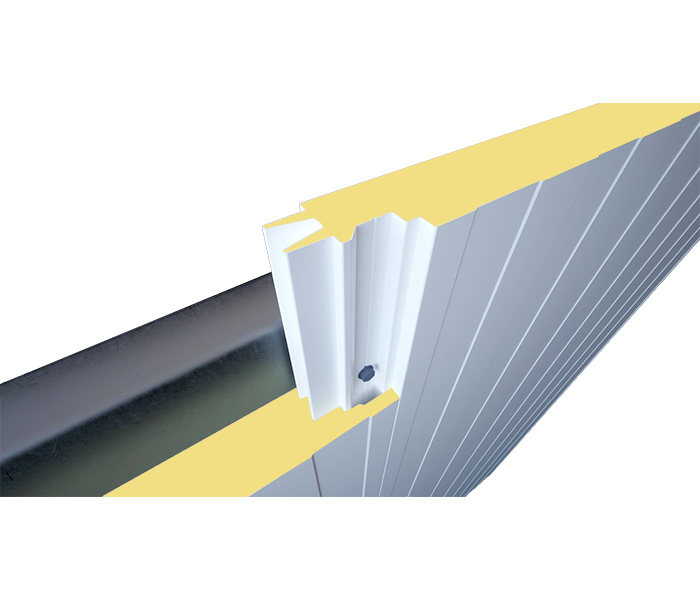

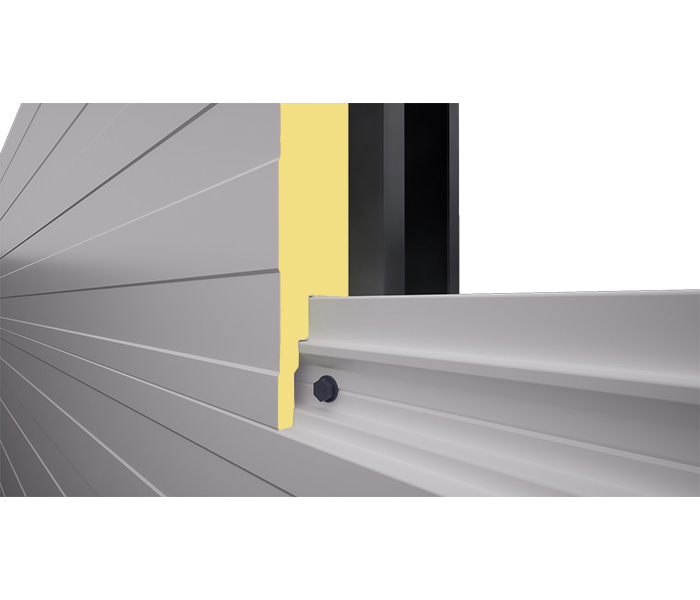

Example Joint of Products

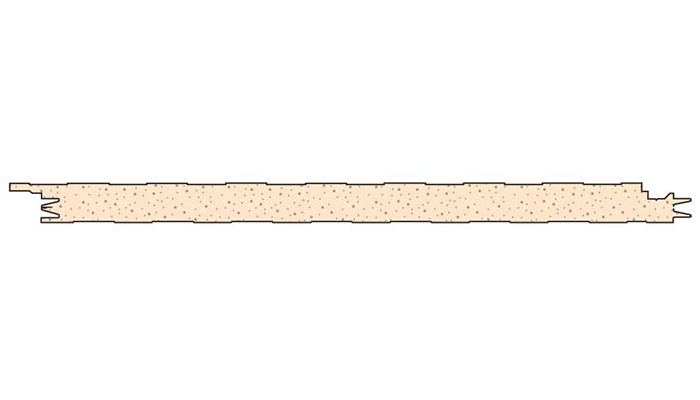

MESA TYPE

Large corrugation Sandwich Panels provide another option for your warehouse walls or prefabricated rooms. These panels feature an enlarged ribbed surface, with a width of 50 mm, which effectively conceals the joints of the Secret joints, creating a seamless appearance. They are particularly suitable for exterior applications, as the large corrugation on the surface enhances the strength and durability of the walls.

MATERIAL SURFACE
The material is made of galvanized steel and coated with two layers of polyester. This results in the durability of the panels and is suitable to use in high humidity conditions such as cold storage. The exquisite corrugation present on the wall not only serves a practical purpose but also imbues the structure with an alluring aesthetic appeal, thereby elevating its visual splendor to new heights.
Technical Information of Sandwich Panel

Product Name : Double Mesa Skin Insulated Sandwich Panel
Application : Ceiling , Wall, Clean Room, Cold Room, Warehouse

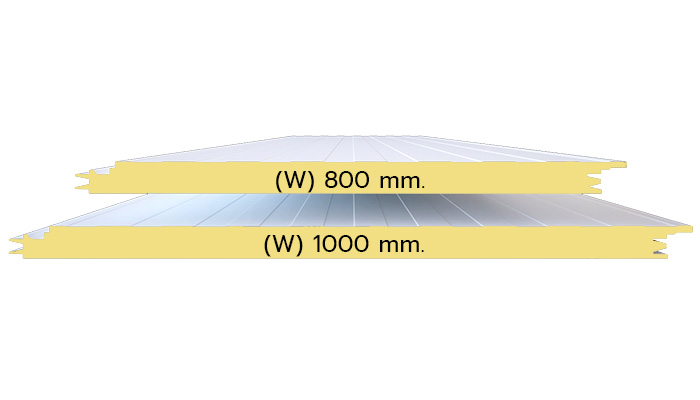

Available Thickness : 50, 75, 100 mm.
Thermal Conductivity : 0.0176 Kcal/m2 hr. oC
Interior : PPGI with 100 microns PE Protection film
Exterior : PPGI with 100 microns PE Protection film
Joints : Secret joints

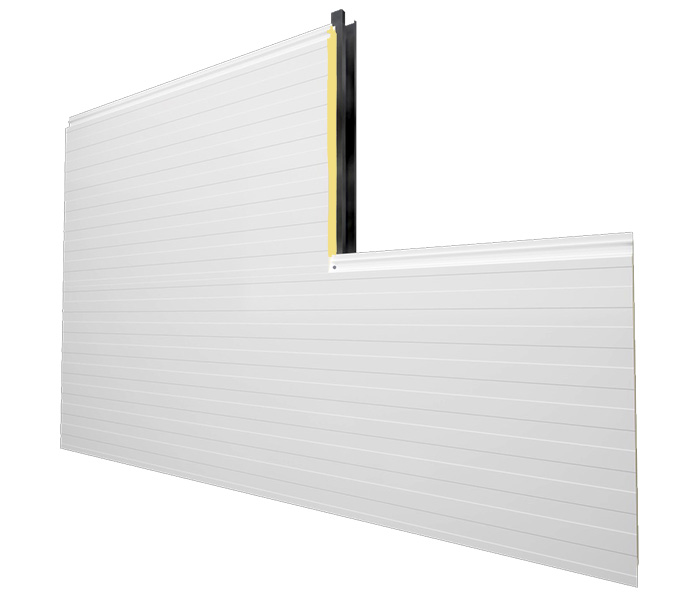

Orientation : Vertical or horizontal

Core Material

Material : Polyisocyanurate (PIR) Foam
