Roof Panel - Micro Type

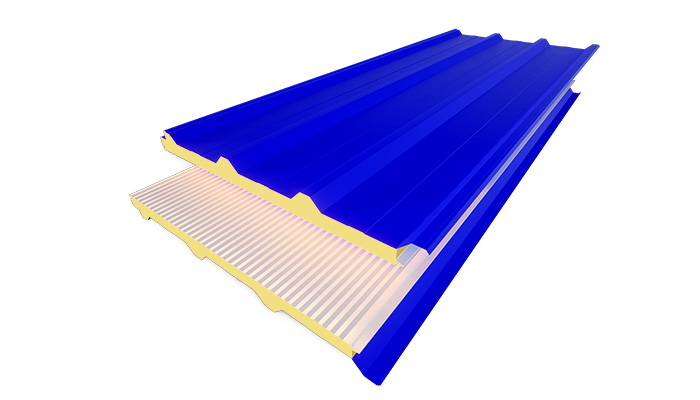

Product Sample

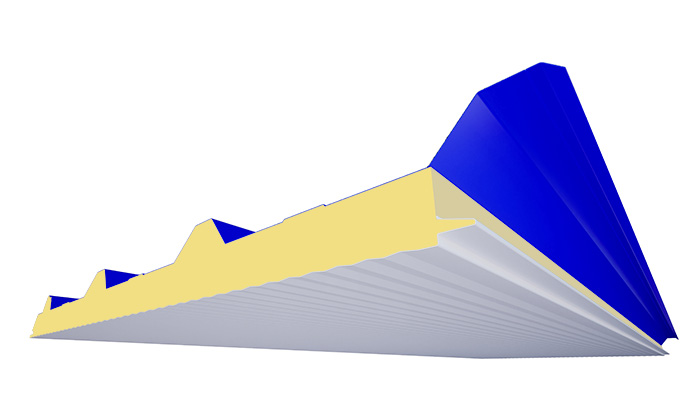

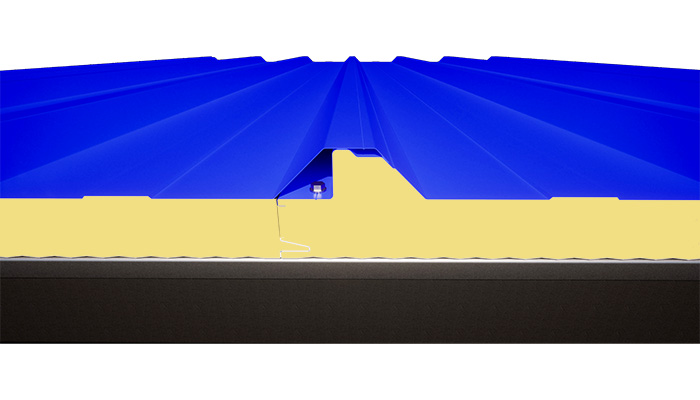

Example Joint of Products

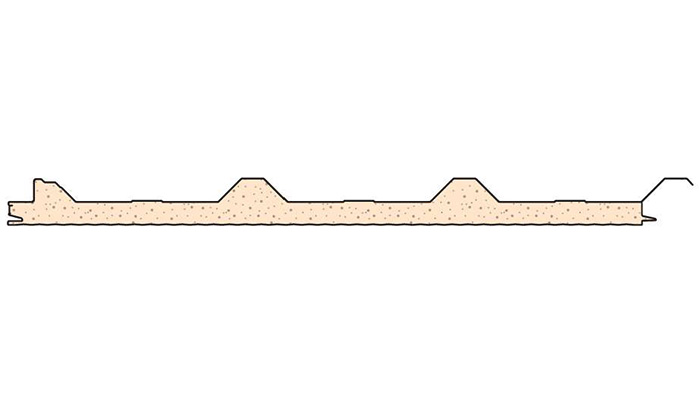

MICRO TYPE

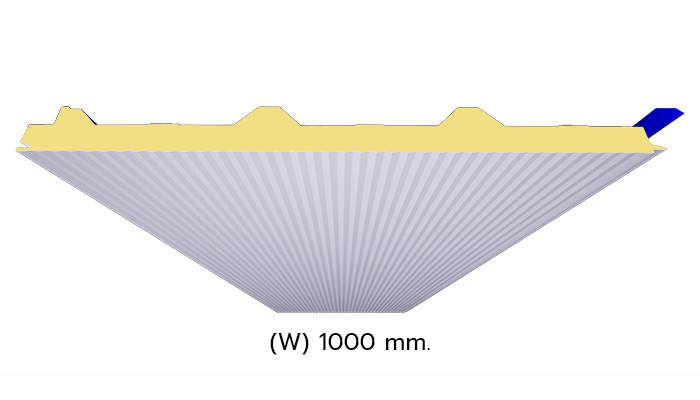

The roof panels with small 25mm corrugation underneath are designed to enhance the strength of the roof and are suitable for applications that require longer roof spans. Additionally, they feature specially designed joints that ensure 100% leak-proof protection, specifically tailored for roof panels. These roof panels provide excellent waterproofing capabilities while maintaining structural integrity.

MATERIAL SURFACE
The material is made of galvanized steel. Coated with two layers of polyester. The result is durable to use even when exposed to sunlight and high temperatures. And withstand all weather conditions and have a long service life. with off-white as the standard color.
Technical Information of Sandwich Panel

Product Name : Roof Panel Skin Micro.
Application : Roof panel
Available Thickness : 25 , 50 mm.
Thermal Conductivity : 0.0176 Kcal/m2 hr. oC
Interior : PPGI with 100 microns PE Protection film
Exterior : PPGI with 100 microns PE Protection film
Joints : Secret Joints

Core Material

Material : Polyisocyanurate(PIR) Foam
