Rockwool Panel · Mineral Wool Core
SQUAREROCK™ Panel — Non-Combustible Rockwool Sandwich Panels
SQUAREROCK™ Panel (Rockwool Panels) is a high-performance prefabricated insulated panel using a Rockwool (mineral wool) core, manufactured by Square Panel System Co., Ltd. in Thailand. It is specifically designed for projects that prioritize fire safety, sound insulation and structural strength.
Mineral by nature. Sustainable by design.
Natural Strength
Thermal & Acoustic Performance
Eco Friendly
Thermal & Acoustic Performance
Eco Friendly
Fire Proof
Non-Combustible
Acoustic
High sound absorption
Thermal
Excellent K-values
SQUAREROCK™ Rockwool Panel Value Proposition
Rockwool Sandwich Panels with a Mineral Wool Core
SQUAREROCK™ Panel is a high-performance prefabricated Rockwool sandwich panel using a mineral wool core. It is specifically designed for projects that prioritize fire safety, sound insulation, and structural strength. The panel is ideal for industrial buildings, commercial facilities, and areas with high fire risk.

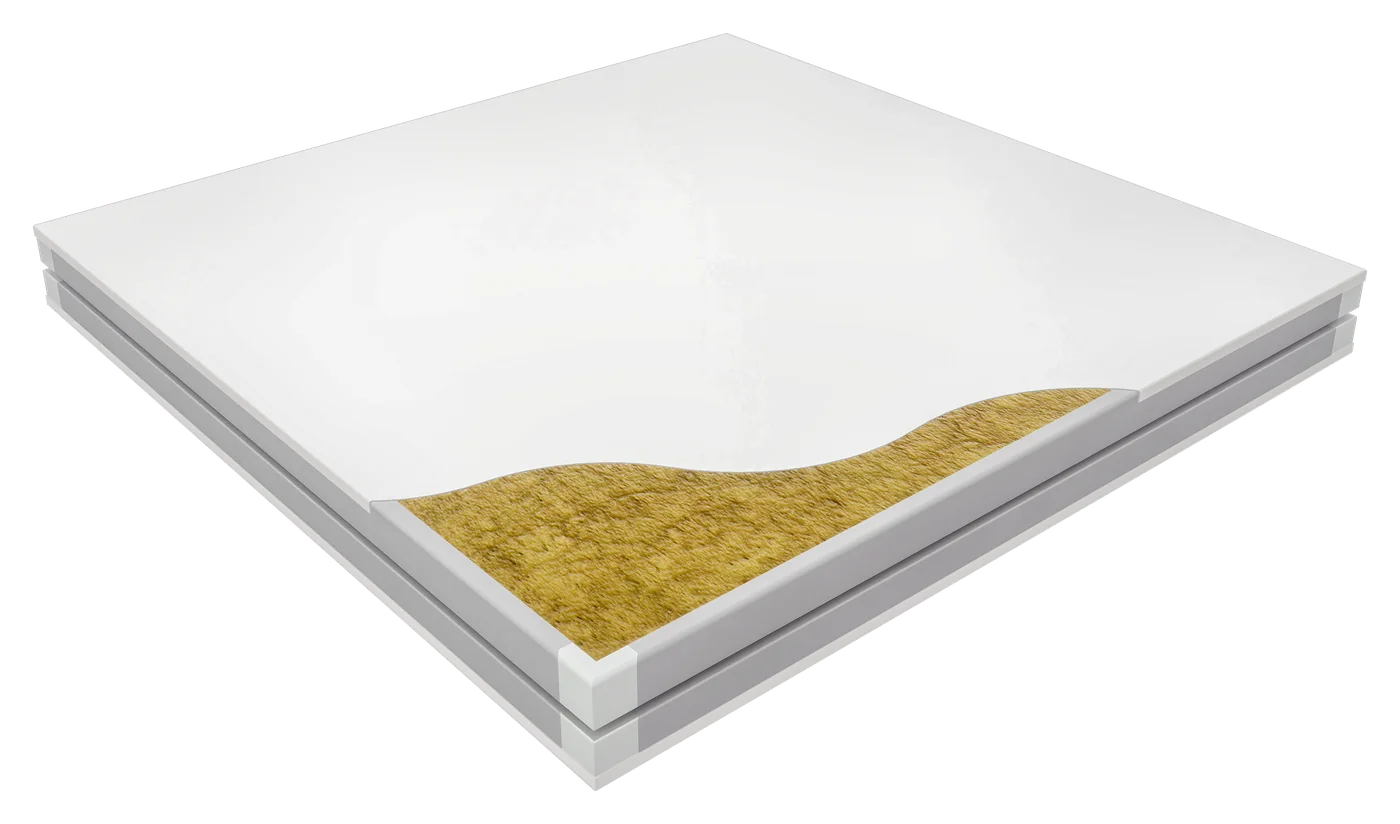

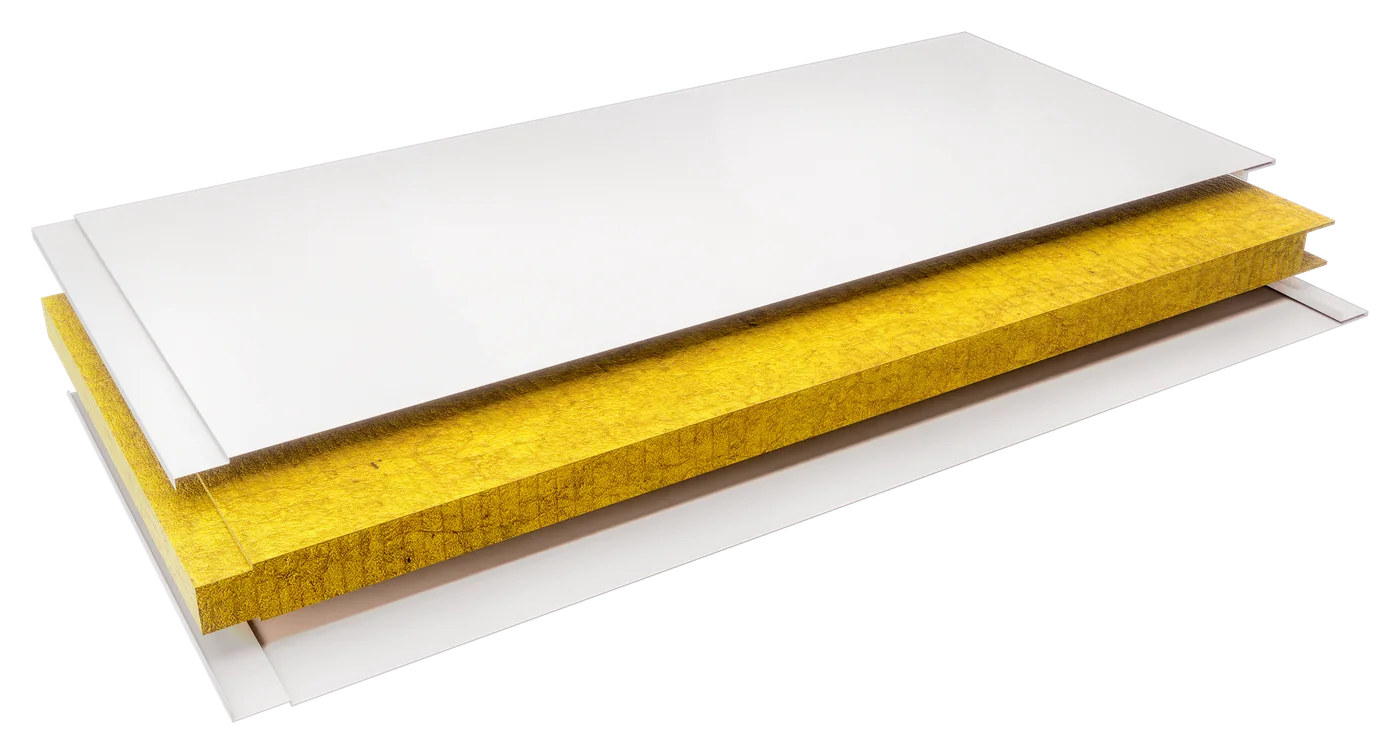

Rockwool Panel Construction
1
Pre-painted galvanized steel (PPGI) facing
2

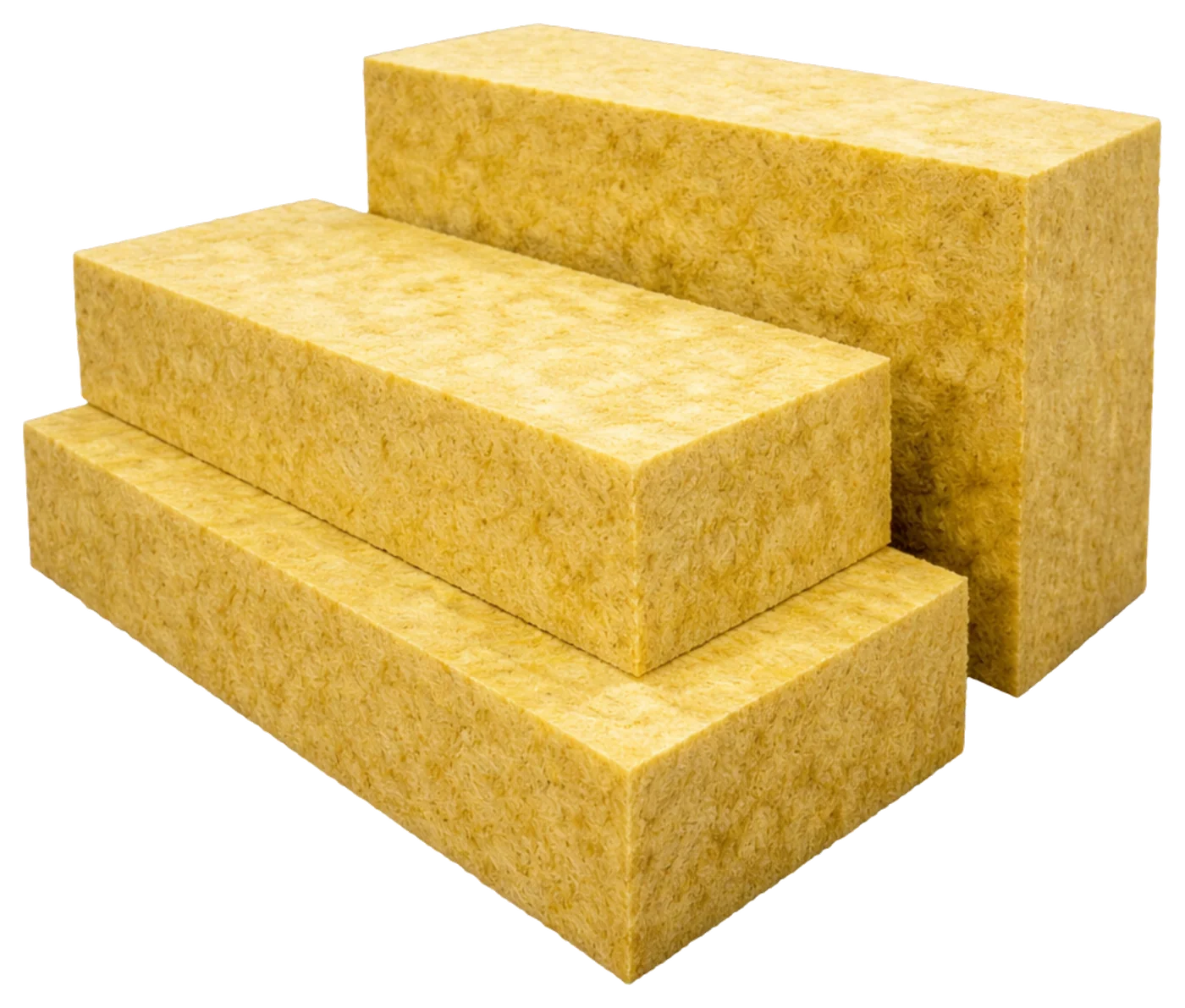

Rockwool (mineral / stone wool) insulated core — non-combustible, melting point >1,000°C
3
Pre-painted galvanized steel (PPGI) facing
Why Choose SQUAREROCK™ Rockwool Panels?
Key Advantages of SQUAREROCK™ Rockwool Panels
Engineered and manufactured to international standards, with third-party fire testing behind every panel.
Industrial-Grade Strength
High compression, tensile, and shear strength
Superior Fire Safety
Non-combustible Rockwool (mineral wool) core with melting point exceeding 1,000°C
Certified Fire Resistance Performance
Tested in accordance with BS 476 Part 20 & 22
Excellent Acoustic Insulation
Fibrous Rockwool structure effectively reduces airborne sound
Stable Thermal Performance
Thermal conductivity λ = 0.036 W/m·K
Inorganic & Sustainable Eco Friendly
No CFCs, HCFCs, asbestos; resistant to mold, rot, and vermin
ROCKWOOL PANEL DESCRIPTION
Safe and Reliable, Non-Combustible Rockwool Core

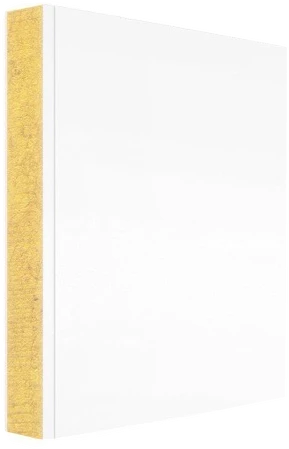

SQUAREROCK™ Panel consists of a mineral wool insulated core, sandwiched between two layers of pre-painted galvanized steel (PPGI). The inorganic core structure ensures excellent dimensional stability, high structural strength, and superior fire resistance, even under high-temperature conditions.
Rockwool Panel Technical Data
SQUAREROCK™ Rockwool Panel Technical Performance
Data from the official SQUAREROCK™ Panel catalog, tested to international standards.
| Property | Performance | Standard |
|---|---|---|
| Load-bearing capacity of 50 mm thick panel at 2.5 m span | 150 kg/m² | EN 14509 |
| Compression strength of 50 mm thick panel | 6,000 kg/m² (≈ 60 kPa) | ASTM C365 |
| Thermal Conductivity | 0.036 W/m·K | ASTM C518 |
| Melting Point of Stone Wool Core | > 1,000°C | ASTM E794 |
| Water Vapor Absorption | < 0.04%, by volume | ASTM C1104/C1104M |
| Water Absorption (Partial Immersion) | < 1.0 kg/m² | EN 1609 |
Rockwool Panel Noise Absorption Coefficient
For acoustic panels, as tested to BS 3638: 1987.
| Frequency | 125 Hz | 250 Hz | 500 Hz | 1,000 Hz | 2,000 Hz | 4,000 Hz |
|---|---|---|---|---|---|---|
| Absorption coefficient (50 mm panel) | 0.30 | 0.85 | 1.00 | 1.00 | 0.96 | 0.84 |
| Absorption coefficient (100 mm panel) | 0.70 | 1.00 | 1.00 | 1.00 | 0.99 | 0.89 |
Sound Absorption Coefficient 1.00: 100% sound absorption ·
0.50: 50% sound absorption ·
0.00: no sound absorption
Rockwool Fire Safety Performance
Rockwool Panels Compliant with Fire Safety Standards (BS 476 Part 20 & 22: 1987)
SQUAREROCK™ panels were fire-tested by the Fire Safety Research Center, Faculty of Engineering, Chulalongkorn University, on both 100 mm and 50 mm walls.
Before Fire Test (a) 0:00 hr
SQUAREROCK™ Rockwool Panel Before Fire Test
SQUAREROCK™ panels have been tested under standardized fire resistance conditions using a certified furnace setup. The panels are installed as part of the test assembly, with sensors placed to monitor and measure heat transfer through the panel during exposure to fire. This testing method ensures accurate evaluation of the panel's fire resistance performance and its ability to limit heat transmission under fire conditions.
After Fire Test (p) 4:00 hr
SQUAREROCK™ Rockwool Panel After Fire Test
After fire exposure for the specified duration in accordance with BS 476, SQUAREROCK™ panels showed no significant structural damage. The panel integrity remained intact, maintaining its original form and structural strength. This demonstrates excellent fire resistance performance and structural stability under high-temperature conditions.

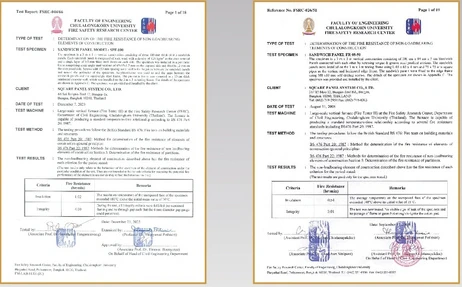

Test standard: BS 476 Part 20 & 22: 1987 — Fire Safety Research Center, Faculty of Engineering,
Chulalongkorn University. Full test reports are available on request at Email :
[email protected].
Rockwool Panel Profiles
SQUAREROCK™ Rockwool Panel Joint Systems
Three joint profiles, each available in 50, 75 and 100 mm thickness — choose the one that fits your installation method and finish requirements.

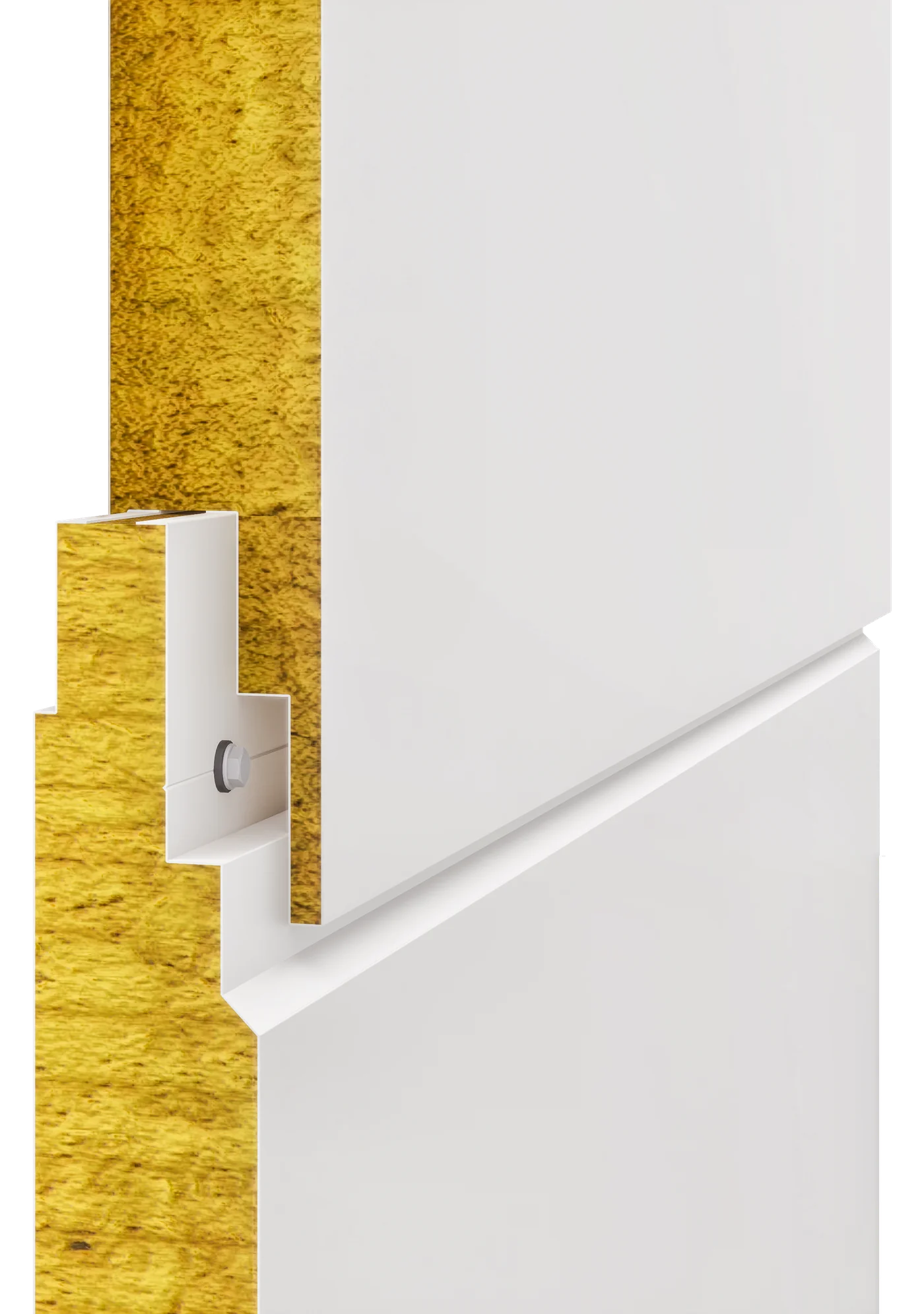

Secret Joint
A premium Rockwool panel joint solution that delivers both structural strength and a clean architectural finish. Fully concealed screw joints enhance waterproof performance and accommodate structural expansion, ideal for exterior walls, warehouses, high-rise buildings, commercial buildings and industrial facilities.
- Concealed Joint System — fully concealed screw design for a clean, seamless appearance
- Waterproof Performance — engineered joint structure prevents water penetration and enhances durability
- Structural Strength — excellent load-bearing capacity and dimensional stability
- Exterior-Ready — concealed fixings and weather-resistant joints for building façades, warehouses and high-rise buildings
BEST FOR
- Exterior Walls
- Warehouses
- High-Rise Buildings
Width: 1,000 mmThickness: 50 / 75 / 100 mm
1,000 mm

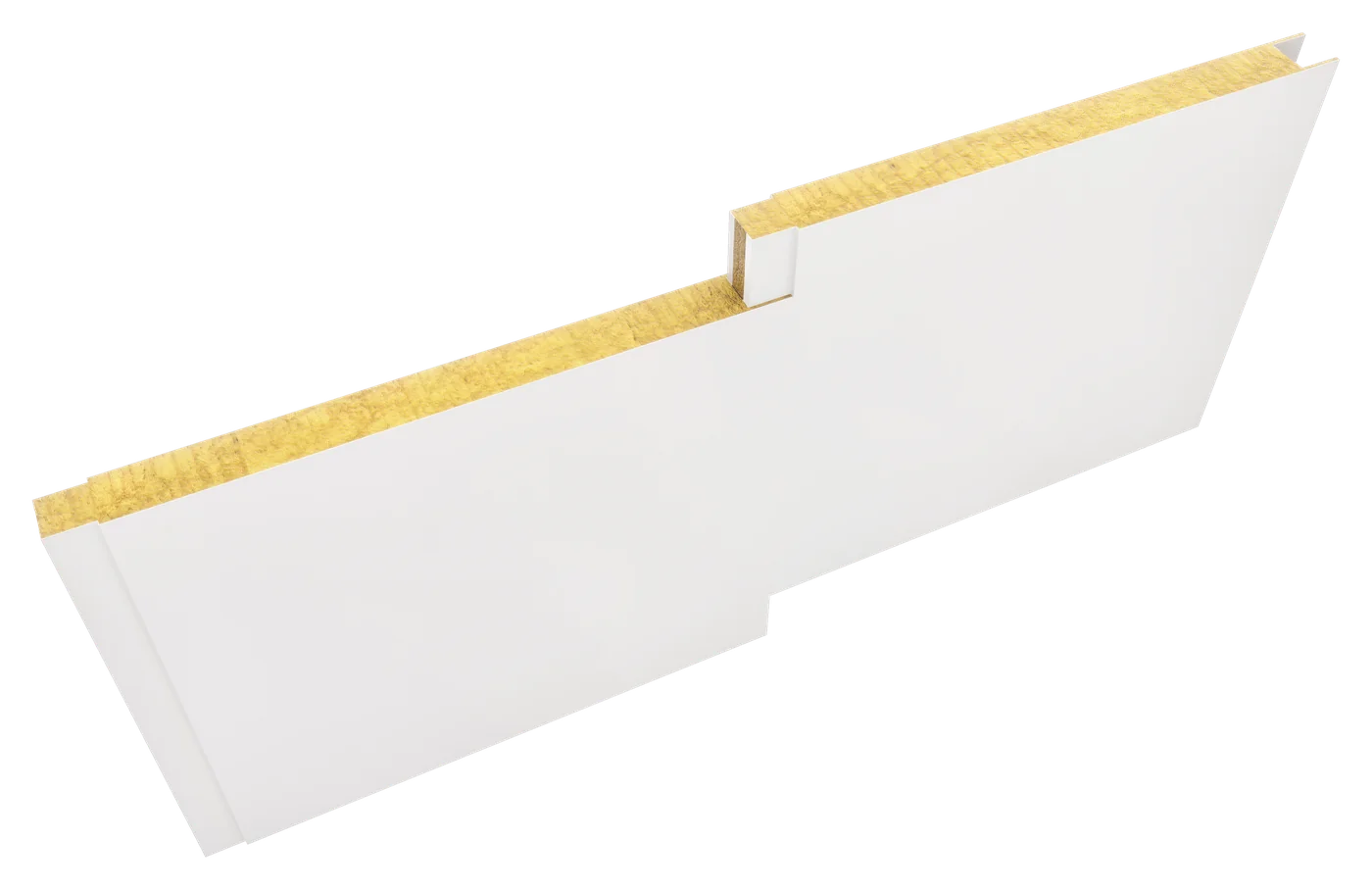

Slip Joint
The Slip Joint Rockwool panel is designed for fast and efficient installation while delivering a clean, elegant finish and modern aesthetic. Ideal for cleanrooms, laboratories, office buildings, or projects that demand a sleek, high-standard appearance.
- Fast and Easy Installation
- Designed for Internal Wall Applications
- Superior Air Leakage Prevention
BEST FOR
- Interior Walls
- Cleanrooms
- Laboratories
- Office Buildings
Width: 1,110 mmThickness: 50 / 75 / 100 mm
1,110 mm

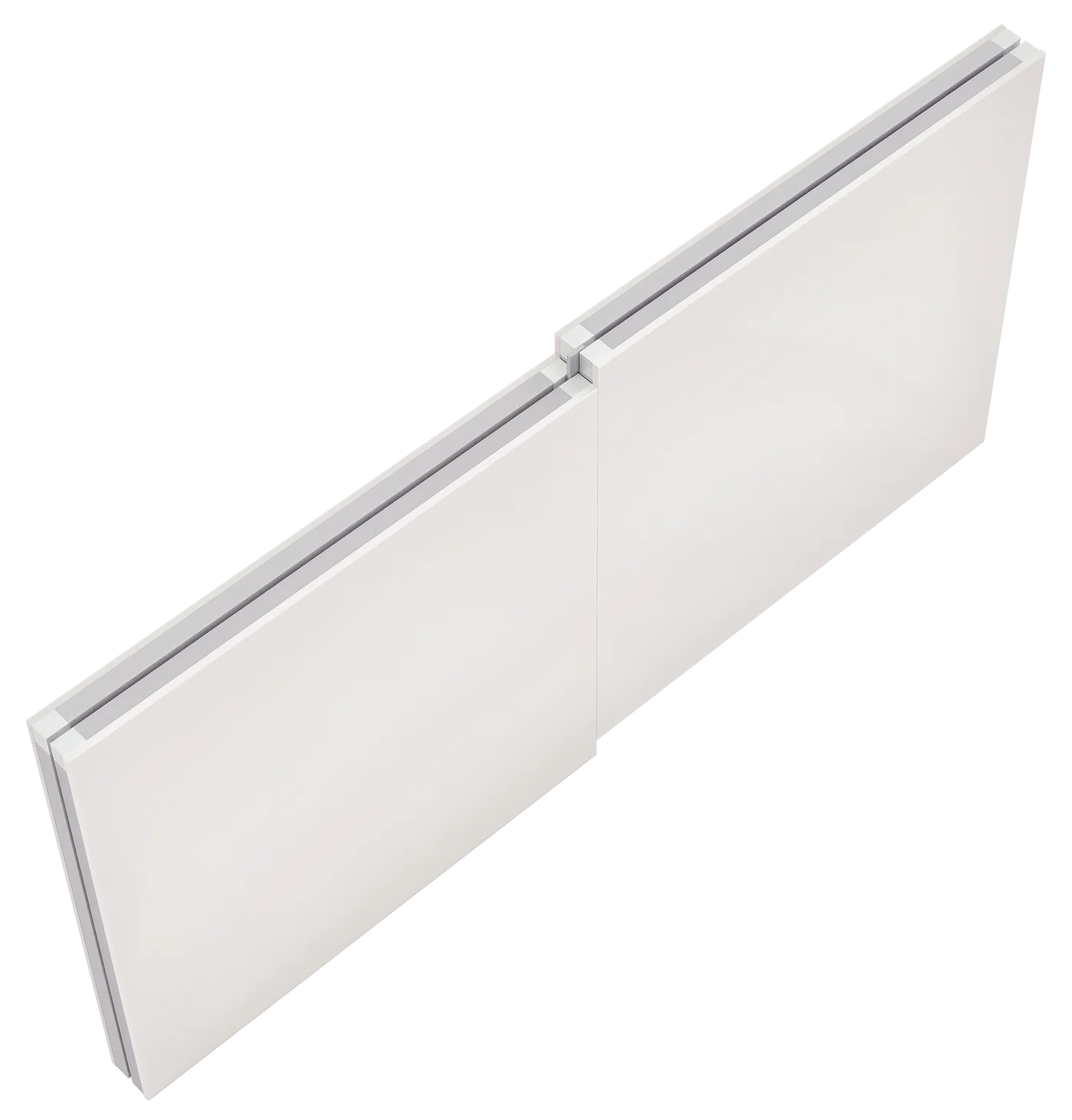

Frame Joint
A Rockwool cleanroom panel specifically designed for high-standard cleanroom applications. A galvanized steel frame on all four sides of the panel (with no exposure of core materials) securely locks the panel joints in place for a neat, tight finish that complies with cleanroom cleanliness standards. Fast, highly precise installation — individual panels can be removed or replaced without affecting adjacent panels, ideal for maintenance and future modifications.
- Easy Panel Removal without affecting adjacent panels
- Engineered for High-Grade Cleanroom Environments
- Fully Concealed Core Material for superior hygiene
BEST FOR
- High-Grade Cleanrooms
- Hygiene-Critical Areas
- Easy-Maintenance Spaces
Width: 1,200 mmThickness: 50 / 75 / 100 mm
1,200 mm
Surface material (all Rockwool panel profiles): double-layer high-quality pre-painted galvanized steel (PPGI)
Rockwool Panel Applications
Where SQUAREROCK™ Rockwool Panels Are Used
Specified as exterior walls, interior walls and ceilings in buildings that demand fire safety, sound insulation and structural strength.
Industrial Buildings
Factories and production facilities where fire safety and structural strength come first
Commercial Facilities
Clean architectural finish with concealed-screw Secret Joint panels
High Fire-Risk Areas
Non-combustible Rockwool core with melting point above 1,000°C
Cleanrooms
Frame Joint Rockwool panels with fully concealed core for superior hygiene
Laboratories
Sleek, high-standard interior walls with fast Slip Joint installation
Office Buildings
Modern aesthetic with acoustic comfort from the fibrous Rockwool core
Exterior Walls & Façades
Secret Joint Rockwool panels with concealed screws and weather-resistant joints for a clean exterior finish
Warehouses & Distribution Centers
Large-span Rockwool walls that combine fire safety, structural strength and fast installation
High-Rise Buildings
Non-combustible Rockwool core and Secret Joint fixing for safer, cleaner building envelopes
About the Rockwool Panel Manufacturer
Square Panel System — Thailand's Rockwool Sandwich Panel Manufacturer
Square Panel System Co., Ltd. (บริษัท สแควร์ พาเนล ซิสเต็ม จำกัด) manufactures prefabricated insulated sandwich panels under the SQUAREROCK™ brand for Rockwool (mineral wool core) panels — mineral by nature, sustainable by design — for industrial and commercial construction across Thailand.
>1,000°CCore heat resistance
BS 476Fire test standard
3Joint systems available
50-100 mmPanel thickness
FAQ
Frequently Asked Questions About Rockwool Panels
What is a SQUAREROCK™ Rockwool sandwich panel?
SQUAREROCK™ Panel is a high-performance prefabricated insulated panel using a mineral wool core, sandwiched between two layers of pre-painted galvanized steel (PPGI). It is specifically designed for projects that prioritize fire safety, sound insulation and structural strength.
What fire safety standards do SQUAREROCK™ Rockwool panels meet?
SQUAREROCK™ is compliant with BS 476 Part 20 & 22: 1987 and was fire-tested on 100 mm and 50 mm walls by the Fire Safety Research Center, Faculty of Engineering, Chulalongkorn University. After the test, the panels showed no significant structural damage and maintained their original form and structural strength.
Which Rockwool panel joint profiles and thicknesses are available?
Three profiles in 50, 75 and 100 mm thickness: Secret Joint SQUAREROCK-SC (1,000 mm width), Slip Joint SQUAREROCK-SL (1,110 mm width) and Frame Joint SQUAREROCK-CR (1,200 mm width). All use double-layer high-quality pre-painted galvanized steel (PPGI).
What buildings are SQUAREROCK™ Rockwool panels suitable for?
Industrial buildings, warehouses and distribution centers, exterior walls and high-rise buildings (Secret Joint), commercial facilities, areas with high fire risk, cleanrooms, laboratories and office buildings.
Where can I buy SQUAREROCK™ Rockwool sandwich panels?
Request a quotation directly from the manufacturer, Square Panel System Co., Ltd., by calling +66 2-744-6300-2, emailing [email protected], or visiting www.squarepanel.com and www.thaisandwichpanel.com.
